PU, AU, EU

Polyurethane ( PU, AU, EU )

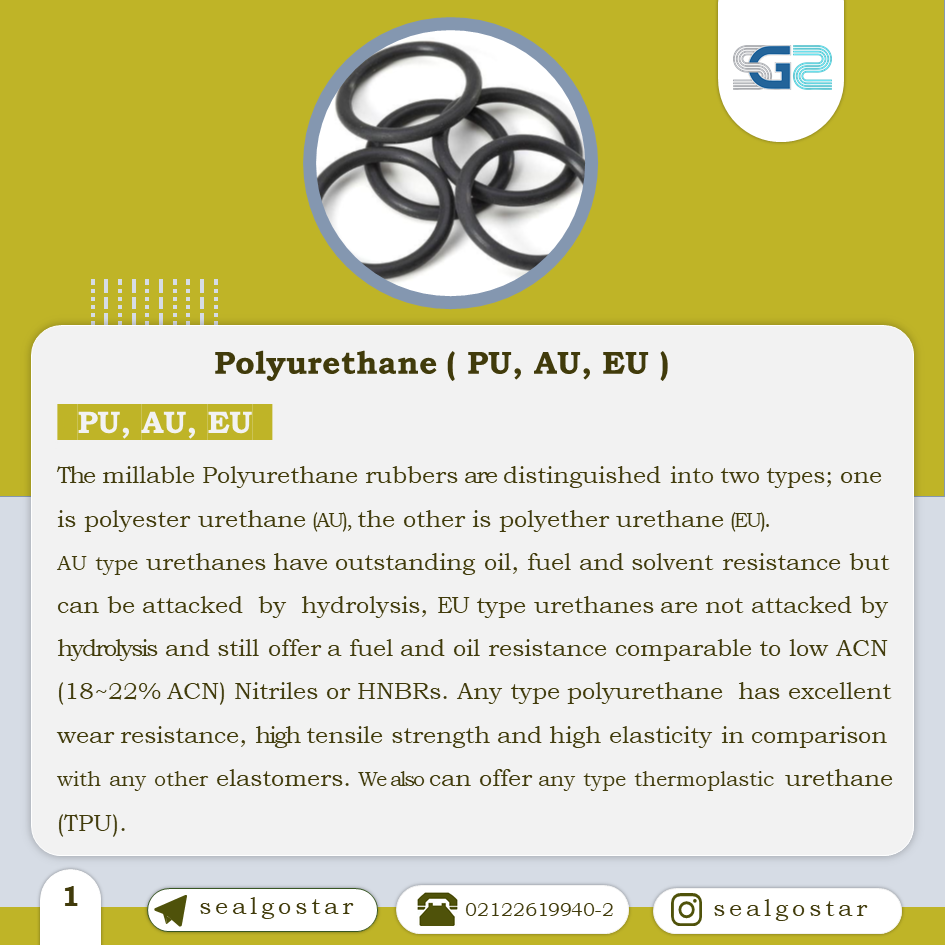

The millable Polyurethane rubbers are distinguished into two types; one is polyester urethane (AU), the other is polyether urethane ( EU ). AU type urethanes have outstanding oil, fuel and solvent resistance but can be attacked by hydrolysis, EU type urethanes are not attacked by hydrolysis and still offer a fuel and oil resistance comparable to low ACN ( 18~22% ACN ) Nitriles or HNBRs. Any type polyurethane has excellent wear resistance, high tensile strength and high elasticity in comparison with any other elastomers. We also can offer any type thermoplastic urethane ( TPU ).

Cure system – Peroxide – Cured

Standard PU compounds are peroxide-cured.

Other Common Variations:

►Polyurethane usually is applied in mechanical industry, especially in the place where material must have higher wear resistance and higher strength.

►In some applying environment, moisture condensing will happen on the surface of rubber seal, and this will cause hydrolysis of AU so choosing EU is better. But EU does not resist oil very well, thus higher aniline point oil must be used for lubricant application.

►Appling in hydraulic system, TPU will be better than millable Polyurethane

Performs Well In…

►Aliphatic hydrocarbon

►Mineral oil and grease

►Silicone oil and grease

►Ozone

►Water up to 50°C ( EU type )

Doesn’t Perform Well In…

►Ketones

►Alcohols

►Esters

►Ethers

►Hot water and steam

►Alkalis, amines

►Acids

►Glycols
