HNBR

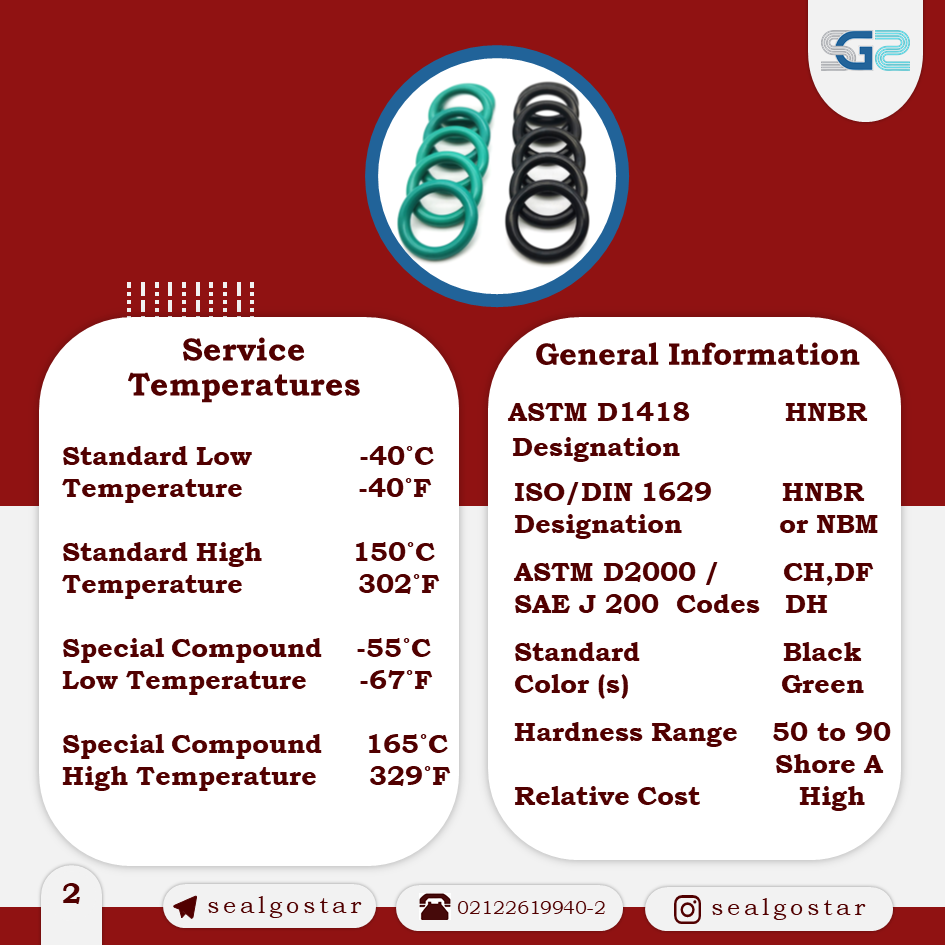

Hydrogenated Nitrile Rubber ( HNBR )

Hydrogenated Nitrile ( HNBR ) is a synthetic polymer that is obtained by saturating the double bonds in butadiene segments with hydrogen, and it is also called HSN ( Highly Saturated Nitrile ). This special hydrogenation process reduces lots of double bonds in main chains of NBR polymer, thus HNBR possesses superior heat, ozone, chemical resistance and mechanical characteristics over standard Nitrile.

Acrylonitrile Content

Same as NBR, there are different levels of Acrylonitrile ( CAN ) contentin different HNBR polymers. The ACN content can be varied from 17% to 49% . Lower ACN content gives better low temperature properties but poorer fuels and polar lubricants. Higher ACN content gives poorer low temperature properties but improves fuels and polar lubricants resistance. Standard HNBRs typically have 36% ACN content.

Cure system–Peroxide – Cured

HNBRs are usually Peroxide-cured for standard compounds of Ge Mao. It also can be Sulfur-cured to improve flexible properties in dynamic system but will reduce the heat resistance and cause poorer compression set.

Other Common Variations:

►HNBRs are often internally lubricated to improve ease of installation or reduce friction for dynamic applications.

►HNBRs can be formulated with only “white list” ingredients as specified in 21.CFR 177.2600 for use in applications where the elastomer will be in contact with food or beverages.

►HNBRs are usually used in automotive air conditioning system where R134a refrigerant gas or new refrigerant for environment protection like R401a, R404a, R410a, R507 and R744 is used.

►HNBRs are also used in automotive shaft system because of their excellent abrasion resistance

►In deeper oil wells, it requires material resistance to heat, crude oil, hydrogen sulfide, steam and explosive decompressionets. Special compounds of HNBR can be available for this application.

Performs Well In…

►Petroleum based oils & fuels

►Aliphatic hydrocarbons

►Vegetable oils

►Silicone oils & greases

►Ethylene glycol

►Dilute acids, bases & salt solutions to moderate temperatures

►Water & steam to 150°C ( 302°F )

Doesn’t Perform Well In…

►Chlorinated hydrocarbons

►Ketones

►Esters

►Ethers

►Strong acids
